Bluetooth Controlled Electronic Home Appliances

Bluetooth Controlled Electronic Home Appliances is a simple project, where we can control different electrical appliances and electronic devices using an Android device with the help of Bluetooth Technology.

We have already seen how a DTMF controlled home appliances system works in the earlier post. Operating conventional wall switches is difficult for physically handicapped or elder people. This project provides the solution to this problem by integrating all the electrical appliances to a control unit that can be operated by an Android application on a device (Android smart phone or Tablet).

The proposed system controls the electrical loads based on the data transmitted by the Android device. An Android application should be installed in user’s mobile or tablet to control the electrical loads. Using this Android application user can send the commands to the Bluetooth module to control the electrical loads. Wireless technology used in this project is Bluetooth. It can also be called as “Bluetooth Controlled Electronic Home Appliances” or “Android based Home Automation System” or “Remote Password Operated Electronic Home Appliances Control System”.

[Also Read: How To Make an Adjustable Timer ]

Bluetooth Controlled Electronic Home Appliances Circuit Principle

In this project, a Bluetooth module is interfaced to 8051 Microcontroller. This Bluetooth Module receives the commands from the Android application that is installed on the Android device, using wireless communication (Bluetooth Technology). The program which is written to the 8051 microcontroller communicates with Bluetooth module serially to receive the commands. Microcontroller switches the electrical loads automatically based on the commands received from the Bluetooth.

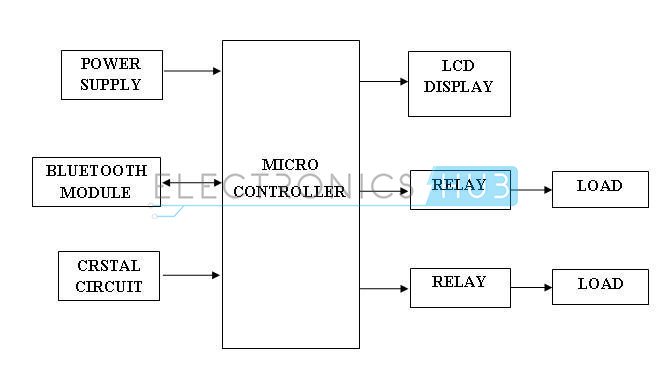

Android Based Home Automation System Circuit Block Diagram

Bluetooth Controlled Home Electronic Appliances - Block DiagramBluetooth Controlled Electronic Home Appliances Circuit Diagram

Bluetooth Controlled Electronic Home Appliances Circuit Diagram

Components Required

Hardware Requirements

  • 8051 Microcontroller (AT89C51)
  • 8051 Development Board
  • 8051 Programmer (Programming Board)
  • Programming Cable
  • 16 × 2 LCD Display
  • 10KΩ Potentiometer
  • Bluetooth Module (HC – 05)
  • 4 – Channel Relay Module
  • Loads (like Light Bulb, Fan, etc.)
  • Power Supply
  • Connecting wires
  • If 8051 Development Board isn’t available, then you might need the following
    • 10µF Electrolytic Capacitor
    • 2 x 10KΩ Resistors (1/4 Watt)
    • 2 x 33pF Ceramic Disc Capacitors
    • 0592 MHz Quartz Crystal
    • Push Button
    • 1KΩ x 8 Resistor Pack
  • If Relay Module isn’t available, then you can build the 1 – channel relay circuit (for 1 load) using the following
    • 5V or 12V Relay
    • BC547 NPN Transistor
    • 1N4007 PN Junction Diode
    • 1 KΩ Resistor (1/4 Watt)

Software Requirements

  • Keil µVision IDE
  • Willar Software
  • Proteus (for Circuit Diagram and Simulation)
  • Android Application installed on Android Device

Android Based Home Automation System Circuit Design

This project consists of a microcontroller, 16 x 2 alphanumeric LCD, 4 – Channel Relay Module, Loads (Light Bulbs are used in the demonstration) and Bluetooth Module.

Here, AT89C51 Microcontroller is used. It is an 8 – bit microcontroller and it requires supply voltage of 5V DC. Use 7805 power supply circuit to provide 5V DC to the microcontroller. We can use 9V DC battery or 12V, 1A adapter to provide the supply to the circuit.

For the above circuit additionally you need to connect reset circuit and crystal circuit to the controller to work properly. You can ignore these connections (Power Supply Regulator, Crystal Circuit and Reset Circuit) if you are using an 8051 Development Board.

In the above circuit, the LCD display is used to indicate the status of electrical loads and also used to display received data from Bluetooth (Optional Feature).

Here, the LCD Display is interfaced to the PORT1 of the microcontroller in 8 – bit mode i.e. the data pins of the LCD are connected to PORT1. The three control pins of the LCD i.e. RS, RW and EN are connected to P3.6, GND and P3.7 pins respectively.

Also, a 10KΩ POT is connected to the Contrast Adjust pin of the LCD to control the contrast of the display.

The TX and RX Pins of the Bluetooth Module are connected to the RXD and TXD pins (P3.0 and P3.1) of the microcontroller. VCC pin (Pin 40) is connected to the +5V and GND pin (Pin 20) is connected to ground.

The Microcontroller communicates with Bluetooth Module using serial communication (UART protocol). Use a baud rate of 9600 to communicate with Bluetooth.

If you want to change the Bluetooth name and password then you need to use Bluetooth AT commands.

Below are the few Bluetooth AT commands:

  • AT — Responds OK. (Used to test the Bluetooth module)
  • AT+RESET — Responds OK. (Used to reset the module)
  • AT+NAME? — Responds with the module name.
  • AT+NAME = <name> — Responds OK. Name should be less than or equal to 20 characters.
  • AT+PSWD? — Responds with the existing password.
  • AT+PSWD =<password> — Sets module pairing password.

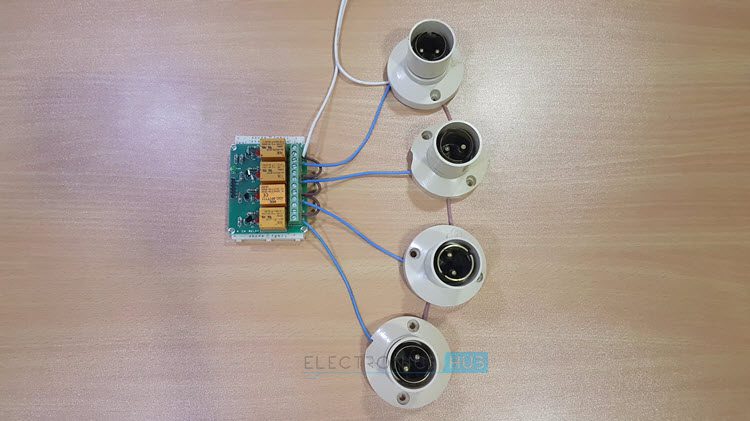

Electrical loads (like Lamp and DC motor) are connected to the P0.0 to P0.3 Pins through the 4 – Channel Relay Module. Here, relays are used to switch AC loads using small DC voltages. NPN transistors are used to drive the relays.

If you are using a relay module, then transistor and other important components to drive the relay are already embedded on the module itself.

NOTE: The Circuit Diagram shows connections of only one load. But the connections to the other loads can also be made in a similar fashion.

Algorithm for Bluetooth Controlled Electronic Home Appliances

  1. Initialize the LCD and UART protocol.
  2. Now read the data from Bluetooth module.
  3. Display the received data on LCD.
  4. Compare the received string with predefined strings and accordingly switch the electrical loads.
  5. Display the status of electrical loads on LCD.

Android based Home Automation System Circuit Simulation Video

Watch the following output video of home automation system using android applications.

DOWNLOAD PROJECT CODE

How Bluetooth Controlled Electronic Home Appliances Circuit Works?

  1. Write the program to the project in Keil software and create .hex file.
  2.  Burn program to the controller with help of 8051 Programmer and Willar Software.
  3.  Now, give the connections as per the circuit diagram.
  4. While making the connections, ensure that there is no any common connection between DC and AC supplies.
  5. Use 5V power supply circuit to provide regulated 5V DC to the microcontroller.
  6.  Switch on the both AC and DC supplies.
  7. Now relay output pins gets 230V. So, do not touch the load connected pins.
  8. Install the “Bluetooth Controller” application on your Android Device (Mobile Phone or Tablet)
  9. Now pair the Android device with Bluetooth module.
  10. Configure the Bluetooth Controller App as per the 8051 Program.
  11. Send data to switch ON or OFF the electrical loads.

Related Post: Also read the post – RF remote control for Home Appliances.

Bluetooth Controlled Electronic Home Appliances Project Output Video

Bluetooth Controlled Electronic Home Appliances Project Applications

  • This project is used to control the various electrical appliances from the remote area.
  • Using this project we can control all the loads using a single remote and a control unit.

Limitations of the Circuit

  • In this project the distance between control unit and android device is limited.
