Ever spent hours creating a 3D model in CAD software and ended up with wrist pain? Discomfort shouldn’t be the price for precision. The right mouse can improve your comfort, efficiency, and productivity. But with so many options, choosing the best mouse for CAD can feel overwhelming. Here’s what you need to consider:
- Grip And Comfort: Choose an ergonomic design suited for your hand size (medium or large). Look for sculpted grips, thumb rests, and adjustable palm rests to reduce wrist strain.
- High DPI (Dots Per Inch): Opt for a mouse with a high DPI for smoother cursor movement and precise control. Adjustable DPI settings are ideal. Aim for at least 1600 DPI for CAD work.
- Programmable Buttons: Select a mouse with at least 5 programmable buttons for assigning frequent CAD functions. This can improve your workflow by 15-30%, enhancing productivity.
Best CAD Mouse – Table
| Best CAD Mouse | DPI | Programmable Buttons | BUY NOW |
|---|---|---|---|
| TECKNET Wireless Mouse | 2600 | 6 | Check On Amazon |
| Logitech G502 HERO | 25,600 | 11 | Check On Amazon |
| Redragon M602 Mouse | 7200 | 7 | Check On Amazon |
| UtechSmart Venus Pro | 16000 | 16 | Check On Amazon |
| Razer Naga Trinity | 16000 | 19 | Check On Amazon |
| Nulea M501 Wireless Trackball Mouse | 1600 | 6 | Check On Amazon |
| ELECOM HUGE Trackball Mouse | 1500 | 8 | Check On Amazon |
| 3Dconnexion 3DX-700040 SpaceMouse | --- | 15 | Check On Amazon |
Best CAD Mouse – Reviews
1. TECKNET Wireless Mouse
The Wireless Mouse by TECKNET caters to CAD enthusiasts and professionals alike, offering a balance between performance and cost. Its ergonomic design is a standout feature, ensuring a comfortable grip that minimizes strain during extended design sessions. Optical movement detection technology guarantees responsiveness and precision, crucial for intricate design tasks.
However, it is worth noting that the highest DPI setting of 2600 might not satisfy users who work on extremely high-resolution displays or require ultra-fine movement control. Despite this, the mouse performs admirably across most standard displays and tasks.
A major advantage is its long battery life, lasting up to two years without changing batteries. This is beneficial for professionals who need reliable tools. On the downside, the mouse lacks built-in storage for the USB receiver, which might be inconvenient. Additionally, it’s designed for right-handed users, limiting its appeal.
Specifications:
- Dimensions: 4.09 x 2.68 x 1.49 inches
- Weight: Lightweight for easy handling
- Connectivity: Wireless, USB
- Compatible Systems: Windows, Mac, Chrome OS, Linux
- Battery Requirement: 2 AAA batteries (not included)
- Wireless Range: Up to 49 feet
- Adjustable DPI: 800 to 2600
- Special Features: Portable, Comfortable Design, TruWave Precision
- Warranty: 36-month warranty
Pros:
- Ergonomic design promotes comfort.
- Long battery life enhances usability.
- Affordable price makes it accessible.
- Portable and easy to set up.
- Adjustable DPI for customized use.
Cons:
- Batteries not included.
- Limited DPI range compared to higher-end models.
- No storage for USB receiver.
- No Bluetooth connectivity.
2. Logitech G502 HERO
Logitech’s G502 HERO, crafted for gamers, provides precision and adaptability ideal for CAD applications. Its high-resolution sensor can be finely adjusted up to 25,600 DPI, making it incredibly sensitive to the smallest movements. This precision is particularly beneficial for CAD users who require meticulous control over their cursor for detailed drafting and modeling.
Furthermore, the programmable buttons are a boon for professionals who can assign frequently used CAD commands to these buttons, significantly speeding up workflow and efficiency. The onboard memory is particularly useful for users who move between workstations, as it retains their settings without the need for software reconfiguration.
The G502 HERO fits comfortably in your hand, with accessible buttons that prevent accidental presses. The weight tuning feature lets users adjust the mouse’s weight, reducing wrist strain during long sessions. The wired design eliminates battery worries but might limit movement compared to wireless options. The durable build and many buttons may need some getting used to.
Specifications:
- Sensor: Optical sensor
- DPI Range: 100 – 25,600
- Report Rate: 1ms
- Number Of Buttons: 11 programmable buttons
- Weight: Adjustable up to five 3.6g weights
- Connectivity: USB
- Cable Length: 2.1 meters
- Dimensions: 132 x 75 x 40 mm
- Compatibility: Windows, macOS
- Warranty: 2 years
Pros:
- Extremely high precision with adjustable DPI.
- Customizable button configurations enhance workflow.
- Adjustable weight system for tailored ergonomic comfort.
- Onboard memory saves user settings.
- Durable build with a two-year warranty.
Cons:
- Wired design may limit placement flexibility.
- High DPI settings can be overly sensitive for some applications.
- The software may be complex for new users.
3. Redragon M602 Mouse
The Redragon M602 stands out with its RGB lighting, making it a great budget choice for CAD users. Its optical movement detection technology ensures precise control, crucial for manipulating detailed design elements in CAD software. The DPI range can be adjusted up to 7200, offering decent sensitivity adaptable to different design tasks.
With a focus on ergonomics, the M602 is impressive. Its design comfortably supports the hand, with thoughtful placements of buttons to minimize strain and maximize usability. This makes it particularly appealing for users who spend long hours on CAD projects and require a mouse that won’t contribute to hand fatigue.
While the M602’s durability is good, it’s not as robust as some gaming models. However, it performs well in most professional environments where extreme conditions are rare. A standout feature is its programmability. The seven buttons can be customized for CAD-specific commands or macros, speeding up repetitive tasks. The RGB backlighting adds a touch of personalization, making it both functional and visually appealing.
Specifications:
- DPI Settings: Adjustable up to 7200 DPI
- Number Of Buttons: 7 programmable buttons
- LED Modes: 7 different RGB backlight modes
- Connectivity: USB
- Cable Length: 1.8 meters braided fiber cable
- Weight: Moderate, with built-in tuning
- Dimensions: 125 x 70 x 38mm
- Compatibility: Windows, limited Mac OS support
- Materials: Durable plastic with Teflon feet pads
- Software: Redragon software for button mapping and lighting customization
Pros:
- Affordable price with solid performance.
- Customizable buttons enhance CAD operations.
- Comfortable ergonomic design for long usage periods.
- Adjustable DPI for tailored cursor movement.
- Attractive RGB lighting adds visual interest.
Cons:
- No wireless option available.
- Software interface could be more user-friendly.
- May not support all features on Mac OS.
4. UtechSmart Venus Pro
The Venus Pro by UtechSmart is a wireless MMO gaming mouse that excels in both functionality and ergonomic design. Ideal for CAD professionals, it features 16 programmable buttons that can handle a multitude of commands with ease. These buttons are strategically positioned to align with the natural resting positions of the thumb, ensuring easy accessibility without strain.
The precision offered by the Venus Pro is top-notch. With an adjustable DPI setting that reaches up to 16,000, users can achieve incredibly fine control over their designs, making this mouse ideal for CAD work that demands high accuracy. This precision, combined with the wireless freedom it provides, allows CAD professionals to work from various positions without the hindrance of cables.
Battery life is impressive, with up to 70 hours of use. This is ideal for long CAD sessions. The mouse has an auto-sleep mode to save battery when not in use, enhancing energy efficiency. Ergonomically, it fits comfortably in the hand. The grinding coating improves grip and comfort, preventing slips during intense work. This focus on comfort is crucial for professionals using the mouse all day.
Specifications:
- Sensor: PixArt PMW3335 optical sensor
- DPI Range: 100 – 16,000 DPI
- Wireless Technology: 2.4 GHz with Nano receiver
- Battery: 1000mA, rechargeable
- Battery Life: Up to 70 hours
- Number Of Buttons: 16 programmable buttons
- Software: UtechSmart software for customization
- Connectivity: USB C cable and wireless
- Ergonomics: Ergonomic design with grinding coating
- Warranty: 18 months
Pros:
- Exceptional wireless performance with minimal latency.
- High degree of customizability with 16 programmable buttons.
- Excellent ergonomics that reduce hand fatigue.
- Long battery life suitable for extended CAD sessions.
- High precision with up to 16,000 DPI for detailed work.
Cons:
- May be overly complex for users who need a simpler mouse.
- Requires software installation for full functionality.
- Not as widely compatible with operating systems beyond Windows.

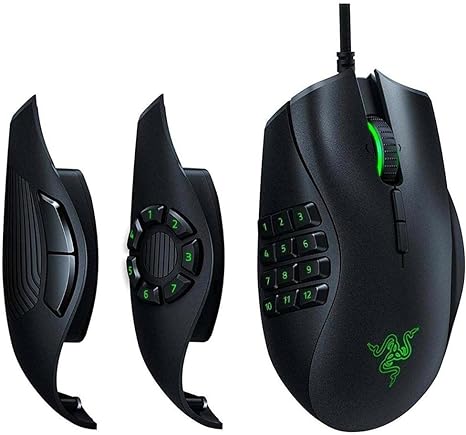

5. Razer Naga Trinity
The Naga Trinity by Razer offers more than just gaming prowess; it’s a perfect fit for CAD professionals seeking a mouse with adaptable features. Its standout feature is undoubtedly the modular side plates, which can transform the mouse to suit different user needs, ranging from a minimal two-button layout to a complex twelve-button setup. This versatility is especially beneficial for CAD operators who use multiple commands and shortcuts in their workflow.
Precision with the Naga Trinity is top-notch, thanks to its 16,000 DPI optical sensor, which provides the accuracy needed for fine adjustments in CAD software. Users can switch DPI settings on-the-fly, adapting to different phases of their projects swiftly.
The mouse’s design is ergonomic, fitting comfortably in hand and reducing strain during long use. Rubberized grips add stability, keeping the mouse steady during intricate work. While the modular side plates may occasionally need reattaching or adjusting, this is a minor issue compared to the customization they offer.
Specifications:
- Sensor: High-Precision 16,000 DPI Optical
- Interchangeable Plates: 2, 7, and 12-button configurations
- Programmable Buttons: Up to 19
- Connectivity: Wired, via USB
- RGB Lighting: Customizable Chroma RGB
- Software: Razer Synapse 3
- Compatibility: Compatible with Xbox One for basic input
- Polling Rate: 1000 Hz Ultrapolling
- Cable Type: Braided fiber cable
- Warranty: 2 years
Pros:
- Highly customizable with interchangeable side plates.
- Precise sensor ideal for detailed CAD work.
- Ergonomic design supports extended use.
- Robust software integration for deep customization.
- Durable mechanical switches designed for longevity.
Cons:
- Modular plates may require maintenance for consistent performance.
- Wired design, restricts movement compared to wireless options.
6. Nulea M501 Wireless Trackball Mouse
The wireless trackball mouse Nulea M501 excels in ergonomic design, prioritizing comfort and reducing muscle strain via its thumb-controlled trackball. This design facilitates smoother cursor movement and helps prevent the wrist and arm fatigue often experienced with traditional mice. Furthermore, the M501 provides versatile connectivity options, such as Bluetooth and USB, making it suitable for different setups and user preferences.
The trackball ensures precision, even in small spaces. Its adjustable DPI settings cater to detailed work and general use, boosting productivity. The mouse is rechargeable, eliminating the need for frequent battery changes and supporting an eco-friendlier workspace.
However, there are issues with a squeaky scroll wheel and occasional Bluetooth connectivity problems. Despite these, its ability to connect to up to three devices simultaneously and its easy-switch technology compensate for these minor setbacks.
Specifications:
- Brand: Nulea
- Color: A-Red
- Connectivity: Bluetooth, USB
- Special Features: Wireless, Ergonomic design, Rechargeable
- Movement Detection: Trackball
- DPI Settings: 400, 800, 1200, 1600 adjustable
- Power: USB-C Rechargeable
- Hand Orientation: Right
- Button Quantity: 6
- Wireless Range: 10 meters
Pros:
- Ergonomic thumb design reduces strain
- High precision trackball
- Multi-device connectivity
- Long battery life
- Adjustable DPI settings
Cons:
- The scroll wheel may squeak
- Initial Bluetooth connectivity issues
- Not suitable for gaming
- Requires occasional cleaning
7. ELECOM HUGE Trackball Mouse
For users seeking precision and comfort, the ELECOM HUGE offers an impressive trackball mouse design. With its sizable build and comprehensive controls, this mouse is engineered to reduce strain and increase efficiency. The optical tracking technology ensures precise cursor movement, and the customizable DPI settings allow for quick adjustments between detailed tasks and broader navigation.
The trackball moves smoothly with large ruby bearings, reducing the need for frequent maintenance. It is designed for users with larger hands, providing substantial palm support for extended use. This mouse has eight functional buttons, making it versatile for various applications.
However, its size might be too large for users with limited desk space or those who prefer a smaller mouse. Also, while it offers superior control, it may take some time to get used to for those accustomed to traditional mice.
Specifications:
- Brand: ELECOM
- Color: Black
- Connectivity: USB
- Special Features: Wireless, Programmable Buttons, 4-Way Scrolling, Ergonomic Design
- Movement Detection: Optical
- DPI Settings: 500, 1000, 1500 adjustable
- Power Source: Battery Powered
- Button Quantity: 8
- Connection Type: USB 2.4GHz + Wired + Bluetooth
- Tracking Method: Optical
Pros:
- Precise optical tracking
- Customizable DPI settings
- Large, smooth-operating trackball
- Ergonomically designed for comfort
- Versatile button configuration
Cons:
- Bulky, not space-efficient
- Steep learning curve for new users
- Limited portability due to size
- Might be too large for some users
- Requires batteries, adding to ongoing costs
8. 3Dconnexion 3DX-700040 SpaceMouse
The SpaceMouse Pro 3DX-700040 by 3Dconnexion is perfect for those engaged in intricate 3D modeling tasks. Its unique six-degrees-of-freedom (6Dof) sensor allows for precise navigation and manipulation of digital content. With a full-sized, soft-coated hand rest and conveniently positioned programmable keys, this device boosts comfort and efficiency, reducing keyboard dependency.
With quick view keys and a rotation toggle key, the SpaceMouse Pro makes error-checking and exploring alternatives in CAD applications efficient. The intelligent function keys update dynamically based on the software in use, making it adaptable for various professional environments.
However, it has a steep learning curve and a high price, which may be prohibitive for casual users or beginners. Additionally, software compatibility and integration can vary, potentially limiting its utility depending on the user’s specific software setup.
Specifications:
- Brand: 3Dconnexion
- Color: Black
- Connectivity: USB
- Special Features: Rechargeable, Six-Degrees-of-Freedom Sensor
- Movement Detection Technology: Optical
- Dimensions: 204 x 142 x 58 mm
- Power Source: Corded Electric
- Button Quantity: 15
- Tracking Method: Optical
- Supported OS: Windows, macOS, Linux
Pros:
- Precise 6Dof navigation sensor
- Comfortable, ergonomic design
- Programmable keys enhance workflow
- Compatible with major operating systems
- Durable build quality
Cons:
- High cost may deter some users
- Steep learning curve
- Limited software compatibility
- Requires desk space due to size
- Corded, less flexibility in setup
Key Features To Consider In A CAD Mouse
When selecting the best CAD mouse for your design needs, several key features must be considered to ensure optimal performance and comfort. Understanding these features can significantly enhance your CAD workflow and precision.
1. Precision And Sensitivity
One important feature of a CAD mouse is its precision and sensitivity, measured in dots per inch (DPI). For CAD work, a DPI range of 800 to 3000 is usually enough. This range allows for fine control over cursor movements. CAD mice often have adjustable DPI settings. It lets users switch between different sensitivities based on the task. It is also useful for detailed design work where high precision is crucial.
2. Ergonomics And Comfort
CAD work involves long periods of use, and the ergonomics of a mouse are critical. An ergonomic mouse for CAD users can reduce hand and wrist strain, minimizing the risk of repetitive strain injuries. Look for features like a contoured design that fits naturally in your hand, a thumb rest, and comfortable grip materials that prevent sweating. Additionally, the mouse’s weight should be balanced to ensure smooth, effortless movements.
3. Programmable Buttons And Customization
Programmable buttons are a significant advantage in a CAD mouse, allowing users to tailor their mice to specific commands and functions used frequently in CAD software. Ideally, a CAD mouse should have at least three to five programmable buttons. These can be customized to execute commands like zoom, pan, rotate, or switch between drawing tools, which speeds up the workflow and reduces the need to switch back and forth between the mouse and keyboard.
4. Wired Vs Wireless
The choice between a wired and wireless mouse largely depends on user preference and workspace setup. Wired mice usually offer a more stable connection without the risk of lag or interference, which is crucial when precision is key. On the other hand, wireless mice provide greater mobility and a cleaner desk setup without the clutter of cables. Recent advancements in technology have significantly improved the performance of wireless mice, making them a viable option for CAD work, with battery lives now ranging from several weeks to months on a single charge.
5. Compatibility With CAD Software
Finally, compatibility with CAD software is essential. The mouse should seamlessly integrate with software applications most commonly used in CAD such as AutoCAD, SolidWorks, or Revit. Some mice are even optimized for specific CAD software, offering enhanced functionality like gesture support or additional customizable options that can be integrated directly into the software.
FAQs:
There’s no single best mouse grip for CAD software, as it’s about personal comfort. Palm grips offer stability but limit dexterity. Claw grips balance control and maneuverability, ideal for precise clicks. Fingertip grips provide agility for quick movements but can cause fatigue. Experiment to find what feels comfortable and precise for your CAD work.
Gaming mice can be used for CAD software, but they might not be optimal. They often prioritize high DPI for fast movements, which isn’t crucial for CAD. They may lack features like extra programmable buttons or an ergonomic design for long editing sessions. However, a gaming mouse with a comfortable shape, moderate DPI (1600-3200), and no distracting lights could work for casual CAD use.
Trackball mice can be great for CAD software, offering ergonomic benefits by reducing wrist strain and allowing precise finger movements. However, they can be less intuitive for navigating large models and may feel inefficient for quick panning and scrolling in some CAD programs. Ultimately, it depends on your preferences and workflow. If ergonomics and precision are priorities, a trackball is worth trying.
Native gesture controls in CAD software are uncommon, but there are workarounds. 3Dconnexion Space Mice provide intuitive panning, zooming, and rotating of 3D models, freeing your hand for other actions. Third-party software like StrokeIt or AutoHotkey allows you to program specific mouse gestures to trigger CAD commands, enhancing customization but requiring setup time.
A high polling rate offers some benefits for CAD users, like reduced latency and smoother cursor movement. It means the mouse updates its position more frequently, making the cursor reflect hand movements faster. This is useful for precise clicks and smooth panning or zooming in 3D environments, but it’s less critical compared to gaming.
Conclusion
Choosing the best mouse for CAD software involves considering key factors. Precision, ergonomics, and customization are crucial for better workflow and comfort. A mouse with high DPI settings ensures accuracy. Ergonomic designs prevent strain during long work hours. Customizable buttons and profiles streamline tasks and improve efficiency. By evaluating these aspects, you can find a mouse that fits your CAD needs, boosting productivity and overall experience.
