Is your electricity acting up? Maybe your lights flicker, or some outlets just don’t work. It could be a double-tapped breaker causing the trouble. Don’t worry, you’re not alone! This happens more often than you think. A double-tapped breaker is basically when two wires are squeezed into one spot in your breaker box. This isn’t safe and can cause problems.
In this post, we’ll break down what a double-tapped breaker is, why it’s a problem, and most importantly, how to fix it. So if you’re ready to tackle this electrical issue, let’s get started!
What is a Double Tapped Breaker?

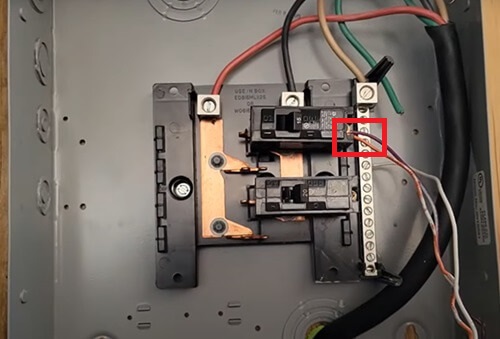

A double tapped breaker refers to a situation in an electrical panel where two or more wires are connected to the same breaker terminal. This setup is generally not permitted by standard electrical codes, as breakers are typically designed to hold only one wire per terminal. When multiple wires are attached to a single breaker, it can create several problems, including loose connections, overheating, and potentially dangerous electrical arcing. These issues can significantly increase the risk of an electrical fire.
While some breakers are designed to handle more than one wire, these are the exception rather than the rule and must be specifically labeled by the manufacturer to indicate they can safely support multiple connections. In most cases, discovering a double tap means corrective action is necessary, such as installing an additional breaker for the second wire or using a breaker that is rated for double taps. Properly addressing a double tapped breaker is crucial for maintaining the safety and reliability of an electrical system.
How To Find Double Tapped Breakers?
To identify double tapped breakers, you’ll need a systematic approach and a careful examination of your electrical panel. Here’s a step-by-step guide:
- Turn Off The Main Power: Safety first. Ensure the main power is off before opening the panel to avoid any risk of electrocution.
- Remove The Panel Cover: With the power off, remove the cover of your electrical panel. This will expose the circuit breakers and wiring.
- Inspect Each Breaker: Look for breakers that have more than one wire connected to them. These are your double-tapped connections.
- Check Wire Colors: Often, wires of different colors on the same breaker indicate a double tap.
- Use A Flashlight: A flashlight can help you see dimly lit panels and ensure you don’t miss any irregular connections.
Risks Of A Double Tapped Breakers
- Electrical Fires: One of the most concerning risks associated with double-tapped breakers is the possibility of electrical fires. When two wires are connected to a single terminal, it often creates a loose connection. This loose connection can lead to arcing, where electrical current jumps across the gap between conductive materials. Arcing generates intense heat, which can ignite nearby materials and cause a fire.
- Circuit Overloads: Each circuit breaker is designed to handle a specific electrical load. Connecting more wires than the breaker is meant to manage can result in overloading. This can cause the circuit breaker to trip frequently, a safety feature intended to prevent overheating. However, if the breaker fails to trip or is improperly rated, it could lead to overheating and potentially a fire.
- Damage To Electrical Devices: Double tapping can create inconsistent and unreliable connections, leading to fluctuations in the power supply. These fluctuations can harm sensitive electronic devices by causing power surges or drops. Over time, this can damage internal components and lead to premature device failure.
- Compliance Issues: Double tapping is against the National Electrical Code (NEC) and most local building codes. Non-compliant electrical systems can cause problems when selling a home or during renovations. Compliance issues might require costly repairs and could complicate insurance claims if an accident occurs due to the non-compliant setup.
- Safety Hazards: Beyond the risk of fires and device damage, double-tapped breakers also pose safety hazards to individuals. A loose connection can lead to electric shocks when handling devices connected to the affected circuit or even when interacting with the circuit breaker panel, especially if the panel is improperly grounded.
How To Fix Double-Tapped Breakers?
Fixing double-tapped breakers is crucial for ensuring the safety and efficiency of your home’s electrical system. Here are some common methods to resolve this issue:
1. Pig-Tailing
Pig-tailing is a practical solution to correct double-tapped breakers. First, ensure all power to the panel is shut off for safety. Locate the double-tapped breaker and prepare a pigtail wire that matches the gauge and insulation color of the existing wires. Use a wire stripper to prepare the ends of the double-tapped wires and the pigtail. Twist the exposed wires together and secure them using a wire nut, ensuring no bare wires are exposed. Connect the other end of the pigtail wire to the breaker’s terminal screw and tighten it securely. Restore power and test the circuit to ensure proper function.
2. Using A Tandem Breaker
Using a tandem breaker is an effective method when panel space is limited but additional capacity is needed. Start by turning off the main power to avoid any electrical hazards. Remove the existing breaker that has the double-tapped wires. Install a tandem breaker in the same slot, which houses two independent breakers in the space of one. Attach each wire to its respective breaker within the tandem unit, ensuring each connection is tight and secure. Once everything is in place, turn the power back on and test each circuit individually to verify that they are functioning correctly without any issues.
3. Add Another Breaker
If your panel has available space, adding a new breaker is a straightforward solution to resolve a double tap. Turn off the main power supply to ensure safety during installation. Install a new breaker in the available slot, ensuring it is suitable for the wire size and circuit requirements. Carefully disconnect one of the double-tapped wires from the original breaker and connect it to the new breaker. Make sure the connection is secure and that the wire is not strained or pinched. After installation, restore power and test the circuit to ensure the new breaker is operating correctly and safely.
4. Install A New Electrical Panel
Installing a new electrical panel is the best way to fix problems like double-tapped breakers, especially in old or full panels. A certified electrician should handle this job because it’s complex. They will swap out the old panel for a new one that has more space and meets current standards. The electrician will move all existing circuits to the new panel, giving each its own breaker. This upgrade not only fixes wiring problems but also boosts the safety and capacity of your home’s electrical system. After the installation, the system should be thoroughly tested to ensure everything works properly.
FAQs:
Yes, a double-tapped breaker can be dangerous because it may cause the breaker to overheat, leading to potential electrical fires or circuit damage.
The cost can vary depending on whether you fix it yourself or hire an electrician. A professional repair typically costs between $100 to $150, depending on the complexity of the job.
Yes, a double tapped breaker can increase the risk of electrical shocks. Loose connections or overheating can lead to exposed wires or arcing, which can result in electrocution.
It’s recommended to have your electrical panel inspected at least every three to five years by a qualified electrician. If you’ve recently made significant electrical changes or notice signs of electrical problems, more frequent inspections may be necessary.
Conclusion
Fixing a double tap breaker is important for electrical safety in your home or building. Understanding the cause and getting professional help is key to keeping your system safe and efficient. Electrical repairs aren’t DIY projects, so it’s best to consult a certified electrician. Properly configured connections can prevent hazards and ensure your system runs smoothly.
