If you deal with electric circuits and PCBs, you would know about the soldering process. It is a process that helps in joining two materials (the electronic component and the circuit board) by melting a filler metal (known as solder) between them. Soldering flux plays a pivotal role in ensuring strong and reliable soldered connections across various industries. But what is soldering flux? Soldering flux is a chemical compound applied to metal surfaces before soldering to facilitate the joining process by removing oxides, promoting solder wetting, and preventing corrosion. Understanding the types of soldering flux available and their unique characteristics is important for achieving optimal soldering results. In this article, we will explore the different types of soldering flux and their applications.
What is Soldering Flux?
Soldering flux is a chemical compound used in soldering to facilitate the joining of two metal surfaces by removing oxides and promoting the flow of solder. It is typically applied to the joint before soldering to ensure a strong, reliable bond. The significance of soldering flux in the soldering process cannot be overstated.
Without flux, oxidation on the metal surfaces can hinder the formation of a proper bond between the solder and the base metal, leading to weak joints or even complete failure of the soldered connection.
In essence, soldering flux acts as a mediator between the solder and the metal surfaces, ensuring proper wetting and adhesion of the solder to the joint. Its role in soldering is crucial for achieving high-quality, durable soldered connections in various industries, including electronics, plumbing, and jewelry making.
Moreover, soldering flux also aids in the removal of contaminants, such as dirt, grime, grease, and residues, from the metal surfaces, further improving the quality of the solder joint.
By effectively cleaning the surfaces, flux ensures that the solder can flow smoothly and evenly, resulting in strong and reliable connections. Additionally, soldering flux helps prevent corrosion by protecting the metal surfaces from atmospheric exposure during the soldering process. This is particularly important in applications where the soldered joints may be exposed to harsh environmental conditions or corrosive substances.
Types of Solder Flux
Here are some common types of soldering flux you will find:-

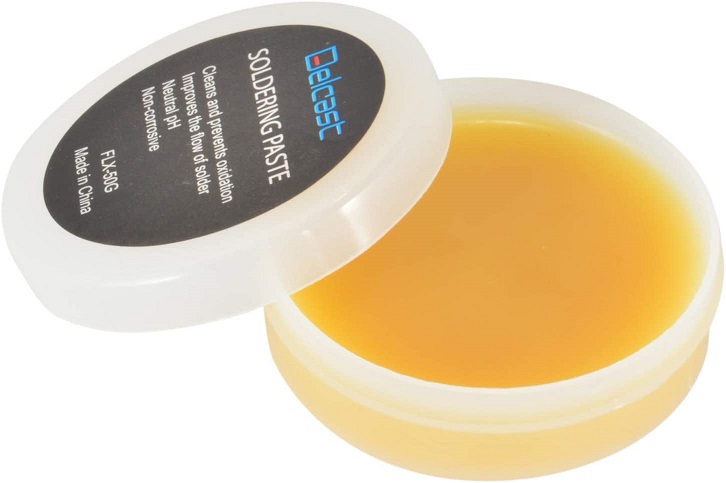

Rosin Flux
Rosin flux, derived from natural resin extracted from pine trees, is a popular type of soldering flux known for its effectiveness and versatility. Its composition typically includes rosin, a solvent (usually alcohol), and activators. The rosin serves as the main fluxing agent, while the solvent helps to dissolve the rosin and facilitate its application onto the soldering joint. Activators are added to enhance the flux’s performance, promoting better wetting and adhesion of the solder to the metal surfaces.
In terms of characteristics, rosin flux offers excellent solderability, meaning it promotes the flow and adhesion of solder to metal surfaces, ensuring strong and reliable connections. It also tends to leave minimal residue after soldering, which is advantageous in applications where flux residue must be kept to a minimum, such as in electronics manufacturing. Additionally, rosin flux exhibits good thermal stability, allowing it to remain effective at high soldering temperatures without breaking down or producing excessive smoke or fumes.
Rosin flux finds widespread applications across various industries, particularly in electronics manufacturing and repair. It is commonly used for soldering electrical components onto printed circuit boards (PCBs), as well as for general-purpose soldering of wires, terminals, and connectors.
We can further classify Rosin flux into 3 different categories:
- Rosin Activated or RA Flux: It’s the most active type of rosin flux that leaves the most residue after the process of soldering.
- Rosin Mildly Activated: You can use this flux to clean plated lands or solder coated leads.
- Rosin Flux: This type of rosin flux is not active at all; it is used for the surfaces, which are already clean and leaves nothing after soldering.
Pros
- The rosin flux can deliver excellent soldering. It can clean the metals you want to solder and can stay there until the process is over. Rosin flux is as useful as the water-soluble flux but comes without its downsides. It means the rosin flux won’t damage or corrode the surface.
- It can act as a barrier once the soldering process is done. It traps the ionic resides, preventing them from moving all over and reacting.
Cons
- One notable limitation of Rosin Flux is its tendency to leave a slightly sticky residue if not adequately cleaned after soldering.
- It can also contaminate the manufacturing equipment. Also, in harsh conditions, rosin flux seems to work inefficiently.
- Rosin flux may not be suitable for high-temperature soldering applications or for soldering certain metals, such as aluminum, where more aggressive flux formulations may be required.

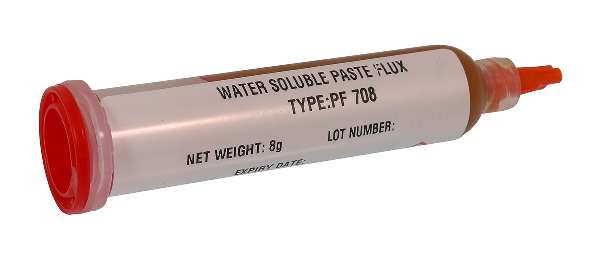

Water Soluble Flux
Water-soluble flux is a type of soldering flux composed of organic acids, surfactants, solvents, and sometimes activators. Hence, this is also known as organic acid flux. The organic acids in the flux serve as the primary fluxing agents, aiding in the removal of oxides from the metal surfaces to facilitate solder wetting and adhesion. Surfactants are added to the flux formulation to help reduce surface tension, allowing the flux to spread evenly over the soldering joint. Solvents are included to dissolve the flux components and make the flux easier to apply, while activators enhance the flux’s performance by promoting better solderability and reducing solder defects.
One of its key characteristics is its water-solubility, which simplifies the cleaning process after soldering. Unlike other flux types that require harsh chemicals or solvents for cleaning, water-soluble flux can be rinsed away with plain water, making it environmentally friendly and safer to use. Additionally, water-soluble flux typically leaves minimal residue after soldering, resulting in cleaner and more aesthetically pleasing solder joints.
Water-soluble flux is commonly used for soldering printed circuit boards (PCBs) and electronic components, where thorough cleaning is essential to remove flux residue that could compromise the performance or reliability of the finished product. It is also suitable for soldering applications in plumbing, HVAC, and automotive industries, where flux residue can be rinsed away with water without causing damage to the workpiece.
Pros
- The primary advantage of water-soluble flux is its ability to be easily dissolved and removed with water.
- When it comes to soldering, water-soluble flux is the best option. This type of flux comes with a lot of activity, which cleans the metal effectively before soldering. Also, this flux type never burns during the process of soldering.
Cons
- But the downside of this flux type is the aggressive nature. Such flux types can be corrosive and can react with the metal even after soldering. It’s the reason why it’s recommended to clean this off the surface after the soldering process.
- Once the soldering is done, the surface should be monitored to notice signs of ionic contamination. And this is quite a hassle.
- Water-soluble flux can also cause dendritic growth. It’s a hair-like structure that can appear between the conductor paths.

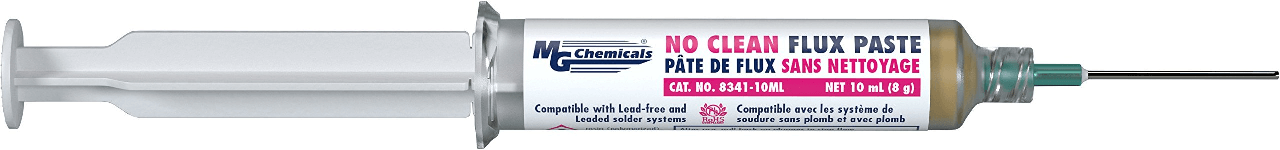

Low-Solids/No-Clean Flux
No-clean Flux or Low-Solids Flux, a modern innovation in soldering technology, is formulated to leave minimal to no residue after soldering, eliminating the need for post-solder cleaning processes. Its composition typically includes synthetic resins, activators, solvents, and sometimes inhibitors. The synthetic resins serve as the primary fluxing agents, while the activators enhance solderability and promote the formation of strong, reliable solder joints. Solvents are included to dissolve the flux components and facilitate application, while inhibitors are added to prevent oxidation during storage and use.
Its key characteristics is its ability to provide clean, aesthetically pleasing solder joints without the need for additional cleaning steps. This simplifies the soldering process, reduces labor and materials costs, and improves overall efficiency. Additionally, no-clean flux is suitable for use in applications where post-solder cleaning is difficult or not feasible, such as in high-density electronic assemblies or sensitive components.
No-clean flux is suitable for soldering applications in aerospace, automotive, and medical industries, where cleanliness and reliability are paramount.
Pros
- This flux type comes with the least chemical activity. It was developed to eradicate the need to clean the residue. And it does that precisely because of the low activity. It never reacts once the soldering process is done. Also, you don’t have to clean as there’s no residue left behind.
Cons
- One drawback is its relatively lower level of flux activity compared to other flux types, which can result in poorer wetting and solder joint formation, especially on surfaces with heavy oxidation or contamination.

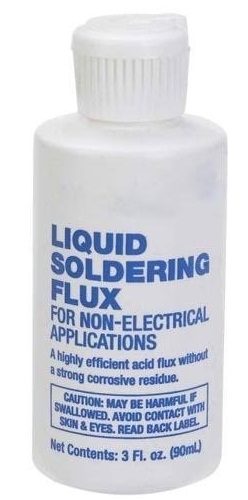

Acid Flux
Acid flux, while less common than other types, serves as a powerful soldering aid in specific applications, especially in plumbing and metalworking. Its composition typically includes strong acids like hydrochloric acid or zinc chloride, along with additional compounds to regulate viscosity and adhesion. These acids play a crucial role in removing oxides from metal surfaces, ensuring proper solder wetting and adhesion. Additionally, acid fluxes often contain zinc chloride to help increase the fluidity of the solder.
In terms of applications, acid fluxes are primarily used in plumbing and metalworking industries for soldering copper pipes, fittings, and other metallic components. They are also employed in jewelry making and stained glass work, where precise and strong solder joints are essential. However, due to their corrosive nature, acid fluxes are not suitable for use on electronic components or sensitive materials that could be damaged by prolonged exposure to acids.
Pros
- The strong acid content will help soldering even with heavy oxidation or contamination.
Cons
- A major disadvantage is their corrosive nature, which can lead to accelerated degradation of metal surfaces if not thoroughly cleaned after soldering.
Choosing the Best Flux for Soldering
When it comes to finding the best flux for soldering, it pours down to the purpose you need it for. One crucial factor to consider is the compatibility of the flux with the base metals and solder alloys being used. Different flux formulations are designed for specific metal combinations, and using the wrong flux can result in poor solderability, weak joints, or even damage to the materials being soldered. Therefore, it is critical to select a flux that is compatible with the metals and alloys being soldered to ensure proper wetting and adhesion.
Another factor to consider is the cleaning requirements associated with the flux. Some flux types, such as water-soluble and no-clean fluxes, leave minimal residue after soldering and can be easily cleaned with water or mild solvents. On the other hand, fluxes like rosin and acid fluxes may leave more significant residue and require more thorough cleaning with harsher chemicals or solvents. The cleaning requirements of the flux should align with the specific requirements of the application and the desired level of cleanliness.
Environmental regulations and considerations are also important factors in choosing the right soldering flux. Flux formulations containing hazardous substances such as lead or chlorides may be restricted or prohibited in certain jurisdictions due to environmental and health concerns. You have to select fluxes that comply with relevant regulations and minimize environmental impact while still meeting performance requirements.
The application method and equipment used can influence the choice of soldering flux. For manual soldering processes, fluxes that are easy to apply and control may be preferred, while automated soldering processes may require fluxes with specific rheological properties to ensure consistent application and coverage.
Additional Factors
Additionally, there are certain factors you can consider before making the decision. Here are the factors you can consider: –
- Type of PCB you’re working with. There are three types: –
- Multi-Layer
- Double-Sided
- Single-Sided
- Type and density of the electronic components you want to solder
- The soldering process you want to use:-
- Wave Soldering
- Hand Soldering
- Through-hole & SMD Components
- The solderability of the metals you need to join
Frequently Asked Questions
How do I choose the right soldering flux for my project?
Consider factors such as compatibility with base metals and solder alloys, cleaning requirements, environmental regulations, and application methods to select the most suitable flux for your specific soldering needs.
What are the advantages of using rosin flux?
Rosin flux offers excellent solderability, minimal residue, and good thermal stability, making it suitable for electronics manufacturing and other applications where flux residue must be kept to a minimum.
Are water-soluble fluxes environmentally friendly?
Yes, water-soluble fluxes are environmentally friendly as they can be easily cleaned with water or mild solvents, reducing the use of harsh chemicals and minimizing environmental impact.
What are the drawbacks of using acid flux?
Acid fluxes are corrosive and require thorough post-solder cleaning to prevent metal degradation. Additionally, their fumes can be hazardous if inhaled, requiring proper ventilation and safety precautions.
Can I use no-clean flux for all soldering applications?
While convenient, no-clean flux may not provide optimal solderability in all situations and may require preheating or longer dwell times for challenging applications. You have to assess compatibility and performance requirements before use.
Conclusion
Water-soluble flux can be aggressive or over reactive in nature, and no reside flux can be inactive. So, when you’re looking for the right kind of soldering flux for electrical purposes, you can prefer the rosin flux. It may sometimes leave a residue behind, but it is highly effective.
However, if you’re dealing with plumbing work, you can go for the acidic or water-soluble flux. So, make sure to determine the purpose of the soldering before choosing the flux type. This way, you’ll undoubtedly find the right kind of flux without any complications.
