Being unable to tell the difference between brazing and soldering is fine. Both soldering and brazing are similar processes. But there’s a slight difference in temperature at which the process is executed. If you want to run into details and find the exact difference, read along this Brazing vs Soldering guide.
In this article, you’ll find detailed info about soldering and brazing procedures. You’ll also find a brief comparison between these two processes. So, if you’re curious to know more, let’s begin.

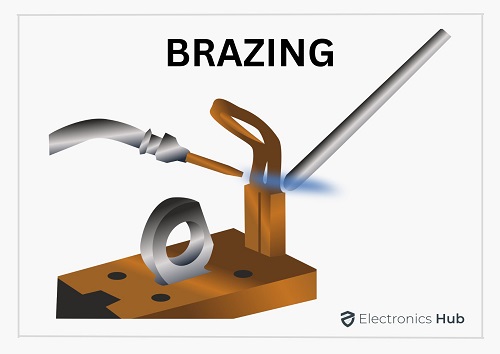

What is Brazing?
Brazing is a metal-joining process that involves the use of a filler metal, typically in the form of a wire or rod, to join two or more metal workpieces together. Unlike welding, where the base metals are melted, brazing relies on the capillary action of the molten filler metal to flow into the tiny gaps between the closely fitted surfaces of the workpieces.
One of the key aspects of brazing is the melting point of the filler metal, which is typically lower than that of the base metals being joined. This allows the brazing process to take place at temperatures below the melting point of the base metals, preventing distortion or damage to the workpieces. Common filler metals used in brazing include alloys of copper, silver, brass, and aluminum.
The brazing process begins with the preparation of the joint surfaces, which must be clean and free of contaminants to ensure a strong bond. Once the surfaces are prepared, the filler metal is placed in the joint area, either as a separate rod or wire, or as a pre-applied flux-coated filler metal. The workpieces are then heated using a torch, furnace, or induction heating method until the filler metal melts and flows into the joint by capillary action.
As the filler metal cools and solidifies, it forms a strong metallurgical bond between the workpieces, creating a joint that is often as strong as or stronger than the base metals themselves. Brazed joints are known for their high mechanical strength, resistance to vibration and shock, and excellent sealing properties, making them ideal for a wide range of applications in industries such as automotive, aerospace, plumbing, and electronics.
Overall, brazing is a versatile and reliable metal-joining process that offers numerous advantages over other methods such as welding or soldering. Its ability to create strong, leak-tight joints with minimal distortion makes it a preferred choice for joining dissimilar metals, thin-walled components, and complex assemblies where other methods may not be suitable.
Temperature Range of Brazing
The temperature range of brazing typically falls between 450°C and 900°C (840°F and 1650°F). This range is higher than that of soldering but lower than the temperatures used in welding. The specific temperature required for brazing depends on factors such as the type of base metals being joined, the composition of the filler metal, and the desired properties of the finished joint. By carefully controlling the heating process, brazing allows for the creation of strong, reliable joints without causing distortion or damage to the workpieces.
Applications of Brazing
Brazing finds applications across a wide range of industries due to its versatility and effectiveness in joining different types of metals. In the automotive industry, brazing is commonly used for joining components such as heat exchangers, exhaust systems, and fuel lines, where the joints must withstand high temperatures and pressures.
In aerospace applications, brazing is used to join critical components like turbine blades and heat shields, where the joints must maintain their integrity under extreme conditions. Brazing is also widely employed in the manufacture of household appliances, HVAC systems, plumbing fixtures, and electronic components, where its ability to create strong, leak-tight joints is essential for performance and reliability.
Overall, brazing offers a cost-effective and efficient solution for joining metals in applications where other methods may not be suitable.
Characteristics of Brazing
- Use of Molten Filler: As said earlier, brazing involves heating & melting of filler material. When it dries or becomes solid, it joins the metal pieces strongly.
- Filler Alloy: The filler used is usually an alloy with a lower melting temperature than the base metals.
- Different Metal Types: Using this process, you can join dissimilar metals like nickel, silver, gold, and even copper.
- Strength: If performed properly, brazing can make metals join tightly. However, the bond isn’t as strong as it is in welding.
Advantages and Disadvantages of Brazing
Advantages of Brazing
- You need a lower temperature and power to use this process.
- You can use it to join dissimilar base metals.
- Better joint strength than soldering
- There’s not much stress applied to the base metal. It’s good for joining delicate metals.
Disadvantages of Brazing
- The joint strength is lower than welding
- Sometimes the flux can contain toxic materials

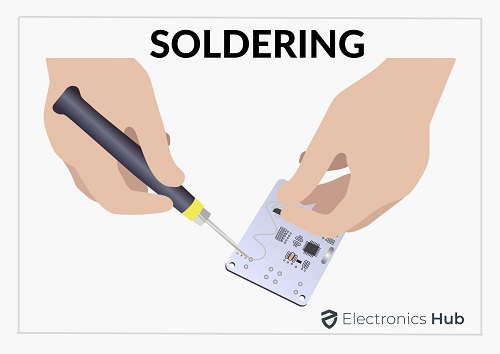

What is Soldering?
Soldering is a widely used metal-joining process that involves melting a filler metal, known as solder, to create a bond between two or more workpieces. Unlike welding, which melts the base metals, soldering relies on melting the filler metal at a lower temperature, typically below 450°C (840°F), to form a joint. This lower temperature allows soldering to be used on delicate or heat-sensitive materials without causing damage or distortion.
The solder used in soldering is typically an alloy composed of tin and lead, although lead-free solder alloys are becoming increasingly common due to environmental and health concerns. When heated, the solder wets the surfaces of the workpieces and forms a metallurgical bond as it solidifies. Flux is often used during the soldering process to remove oxides from the metal surfaces, promote wetting, and prevent oxidation of the solder.
Soldering is widely used in electronics manufacturing for assembling circuit boards and electrical connections. It is also commonly used in plumbing, HVAC (heating, ventilation, and air conditioning), jewelry making, and stained-glass work. Soldered joints are known for their electrical conductivity, which is important in electronics applications, as well as their ability to create a hermetic seal in plumbing and HVAC systems.
Overall, soldering is a versatile and cost-effective method for joining metals and other materials in a wide range of applications. Its ability to create strong, reliable joints without the need for high temperatures makes it suitable for use in industries where precision and delicacy are paramount. With the development of new solder alloys and flux formulations, soldering continues to evolve as a crucial technique in manufacturing and fabrication processes.
Temperature Range of Soldering
The temperature range of soldering typically falls below 450°C (840°F), making it significantly lower than both brazing and welding. This lower temperature range allows soldering to be used on materials that would be damaged or distorted by higher temperatures.
Common solder alloys, such as tin-lead or lead-free compositions, melt within this temperature range, allowing them to form bonds with the surfaces of the workpieces without melting the base metals. The use of flux during the soldering process helps to clean the surfaces, promote wetting, and prevent oxidation of the solder, ensuring a strong and reliable joint.
Applications of Soldering
Soldering finds a wide range of applications across various industries due to its versatility and ease of use. In the electronics industry, soldering is used extensively for assembling circuit boards, soldering components onto PCBs (printed circuit boards), and creating electrical connections.
It is also commonly used in plumbing for joining copper pipes and fittings, as well as in HVAC (heating, ventilation, and air conditioning) systems for soldering refrigerant lines and connections. Additionally, soldering is used in jewelry making, stained glass work, and metalwork for creating intricate designs and joining small components.
Overall, soldering is a valuable technique for joining metals and other materials in applications where precision, low heat, and ease of use are essential.
Advantages and Disadvantages of Soldering
Advantages of Soldering
- It has a lower power and temperature requirement as compared to brazing and welding
- You can join metal with thin walls
- You can join dissimilar metals
- No need for heat treatment after the process
Disadvantages of Soldering
- You cannot use temperatures exceeding 450°C, which is a constraint
- Strength of joint is lower as compared to brazing and welding
- You cannot join large sections using this process
Brazing vs Soldering – What’s the Difference?
Let’s understand the difference between soldering and brazing with a comparison chart:-
| Factors | Soldering | Brazing |
| Process | Uses a lower melting point filler metal (known as solder) to form a joint | Involves melting filler metal to create a metallurgical bond |
| Procedure | No preheating for base metal | It requires preheating of base metal |
| Temperature | Generally, below 450°C (840°F), suitable for delicate materials | Typically, between 450°C and 900°C (840°F and 1650°F) |
| Base Metals | Suitable for joining metals with lower melting points | Suitable for joining metals with higher melting points |
| Application | Used in electronic circuitry, pipe fitting, automotive industry, jewelry making | Versatile, used for joining thick or dissimilar metals |
| Strength | Joints are generally weaker compared to brazing | Stronger joints due to higher temperatures and metallurgical bonding |
| Flux Requirement | Flux is commonly used to facilitate wetting and prevent oxidation | Often requires flux to clean surfaces and prevent oxidation |
| Joint Appearance | Can produce nearly invisible joints with proper technique | Creates more visible joints due to higher temperatures |
| Heat Sensitivity | Suitable for delicate or heat-sensitive materials | May cause distortion or damage to delicate materials |
| Cost | This process is cheaper | It is costlier than soldering |
Key Considerations to Choose Between Brazing and Soldering
Soldering and Brazing procedures are very similar but there are some differences in terms of the source of heat as well as the temperature range. If you want to choose one process for a specific purpose, what would it be? Well, to know about that, please refer to the below key considerations:-
1. Strength Requirements
When determining whether to use brazing or soldering, the strength requirements of the joint are paramount. Brazing, with its higher temperatures and metallurgical bonding, typically produces stronger joints compared to soldering.
This makes brazing the preferred choice for applications where mechanical strength is crucial, such as in structural components or high-stress environments. Conversely, soldering may be sufficient for applications where strength is less critical, such as in electronics or decorative work.
2. Materials Being Joined
Materials being joined play a significant role in the selection process. Brazing is well-suited for joining metals with higher melting points, including steel, stainless steel, and copper alloys. It is also effective for joining dissimilar metals.
Soldering, on the other hand, is ideal for metals with lower melting points, such as copper, brass, and aluminum. This makes soldering particularly useful in electronics assembly, where delicate components and heat-sensitive materials are common.
3. Operating Temperature and Environment
The operating temperature and environment in which the joint will be subjected to must also be considered. Brazed joints can withstand higher temperatures and harsher environments better than soldered joints. Typically, the temperature range of brazing is between 450°C and 900°C (840°F and 1650°F) while it is less than 450°C for soldering. Therefore, brazing is preferred for applications exposed to elevated temperatures or extreme conditions, such as automotive exhaust systems or aerospace components.
4. Cost and Efficiency
Cost and efficiency are practical considerations when choosing between brazing and soldering. Brazing typically requires more heat, equipment, and skilled labor, making it a more costly process compared to soldering. Soldering, with its lower temperature requirements and simpler equipment, can often be performed more quickly and cost-effectively.
5. Appearance and Aesthetics
The appearance and aesthetics of the joint may also influence the decision. Brazed joints tend to be more visible. It is due to higher temperatures and the use of filler metals with a similar color to the base metal.
In contrast, soldered joints can be nearly invisible when done correctly. This makes it preferable for applications where aesthetics are important, such as in jewelry making or decorative art.
6. Application-Specific Requirements
Finally, you have to take application-specific requirements, such as size limitations, heat sensitivity of components, or regulatory standards, into account. These factors can dictate which process is most suitable for the given application.
By carefully considering these factors, you can determine whether brazing or soldering is the optimal metal-joining process.
Conclusion
Whether it’s brazing or soldering, every process has its ups and downs. However, you can make the right choice by considering the material type, appearance, assembly size, and joint strength. Such factors can help you determine which process is best-suited for which purpose. So, go through the info and make the right choice.
